Verification Plate for the Odyssey® XF Imager or Odyssey Fc Imager

The Odyssey verification plate (926-75002) is an optional accessory available for the Odyssey XF and Odyssey Fc. The verification plate is used to verify that the imager is operating as expected. More information about the verification plate is available on the regulatory products page.

Before You Begin

Re-certify the verification plate annually. Contact biosupport@licor.com to request the re-certification service (service number 926-75005).

Handle the verification plate with powder-free gloves.

Store the verification plate in the envelope it ships with.

Never touch the glass or the metal dividing the two sections of glass.

Never attempt to clean the verification plate yourself. If the verification plate needs to be cleaned, return the plate to LICORbio for cleaning and re-certification.

Position the Plate

  1. Ensure the instrument's imaging drawer is clean, dry, and free from any residue or dust.

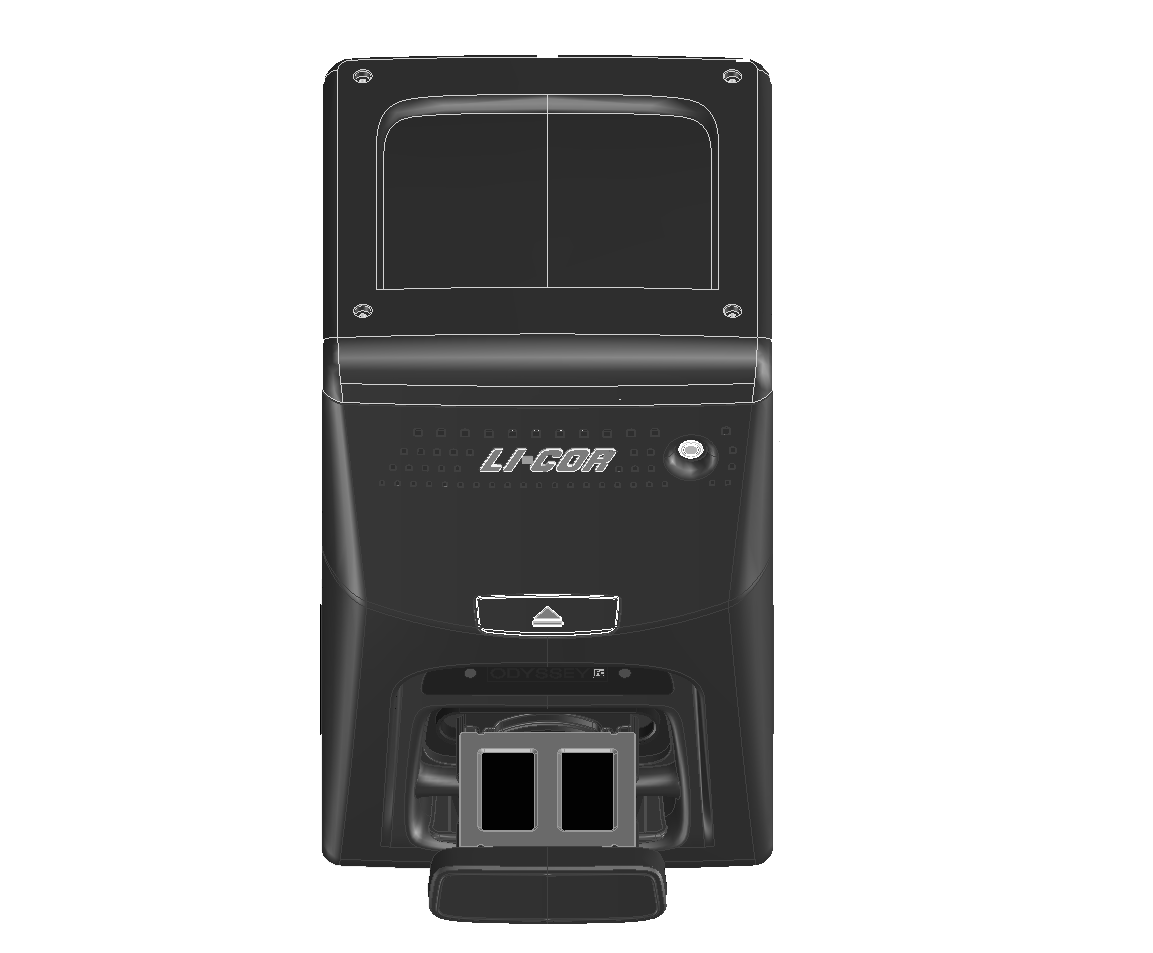

  2. Place the verification plate in the imaging drawer with the glass facing up.

Scan the Plate

  1. Start LI‑COR Acquisition Software LI-COR Acquisition icon, if you have not already.

  2. Select your Username and Image Data Folder.

  3. Click Scan .

  4. Choose the imager you want to connect to.

  5. Click Connect.

  6. Click the imager name displayed in the top left corner of the LI‑COR Acquisition Software window.

  7. In the menu that opens, select Verification Plate.

  8. Enter the verification plate's serial number and each channel's verification coefficient (from the Certificate of Verification).

  9. Click Start Scan.

  10. When image acquisition completes, click Export to export a file that can be analyzed.
